Validates BER across multiple data streams
Precision six-channel BER estimation and transport analysis —
available with IRIG 218-20 TMoIP (-IP) or TTL PCM (-TTL) interfaces.
HexaBERT-IP — TMoIP
Analyzes multicast or unicast IRIG 218-20 TMoIP streams for packet transport integrity and telemetry payload quality — without PCM conversion or a separate BER test set.
- PRN-based BER estimation inside TMoIP payloads
- Packet loss, missing-packet, and out-of-order detection
- Latency and jitter measurement from TMoIP timestamps
- Optional DQM/DQE visibility with sync and data-status awareness
HexaBERT-TTL — Baseband PCM
Measures bitstream integrity directly at the TTL Clock/Data interface before network encapsulation.
- Six independent TTL Clock/Data channels
- BER, bit-count, and error-count measurement
- DQM/DQE extraction and BER correlation when present
- Reference check for receiver output before TMoIP transport
IN THE FIELD
Where HexaBERT fits
Platform Features
Key Features
- Estimate BER, bit counts, and error counts across up to six independent telemetry streams using selectable PRN patterns.
- Validate telemetry at the network or baseband layer with IRIG 218-20 TMoIP (-IP) or TTL Clock/Data (-TTL) configurations
- Analyze packet counts, packet errors, missing-packet gap handling, sync loss, and telemetry payload integrity
- Use dynamic indicators, latching sync-loss alerts, strip-chart views, and optional timestamped logging to capture intermittent faults

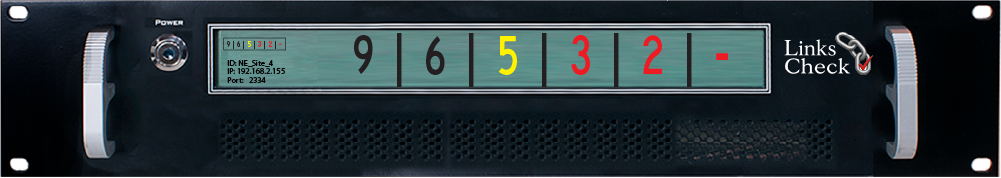

Physical and Interface
- 19-inch rackmount chasis
- One 1Gb Ethernet (IRIG 218-20) input port
- One 1Gb Ethernet remove access / monitoring port
- Browser-based operator interface – no client software
- Optional NTP time synchronization for time-lagged logging
