Monitor data quality in real time
Six-channel DQM/DQE, BEP, synchronization, and link-health visibility across IRIG 218-20 streams — without post-processing or specialized analysis tools
The Data Quality Quick Look (DQQL) gives telemetry operators and engineers immediate visibility into data quality, synchronization status, and link health — without post-processing or specialized analysis tools. The system monitors up to six IRIG 218-20 TMoIP streams, extracting and displaying DQM and DQE values alongside real-time BEP trends.

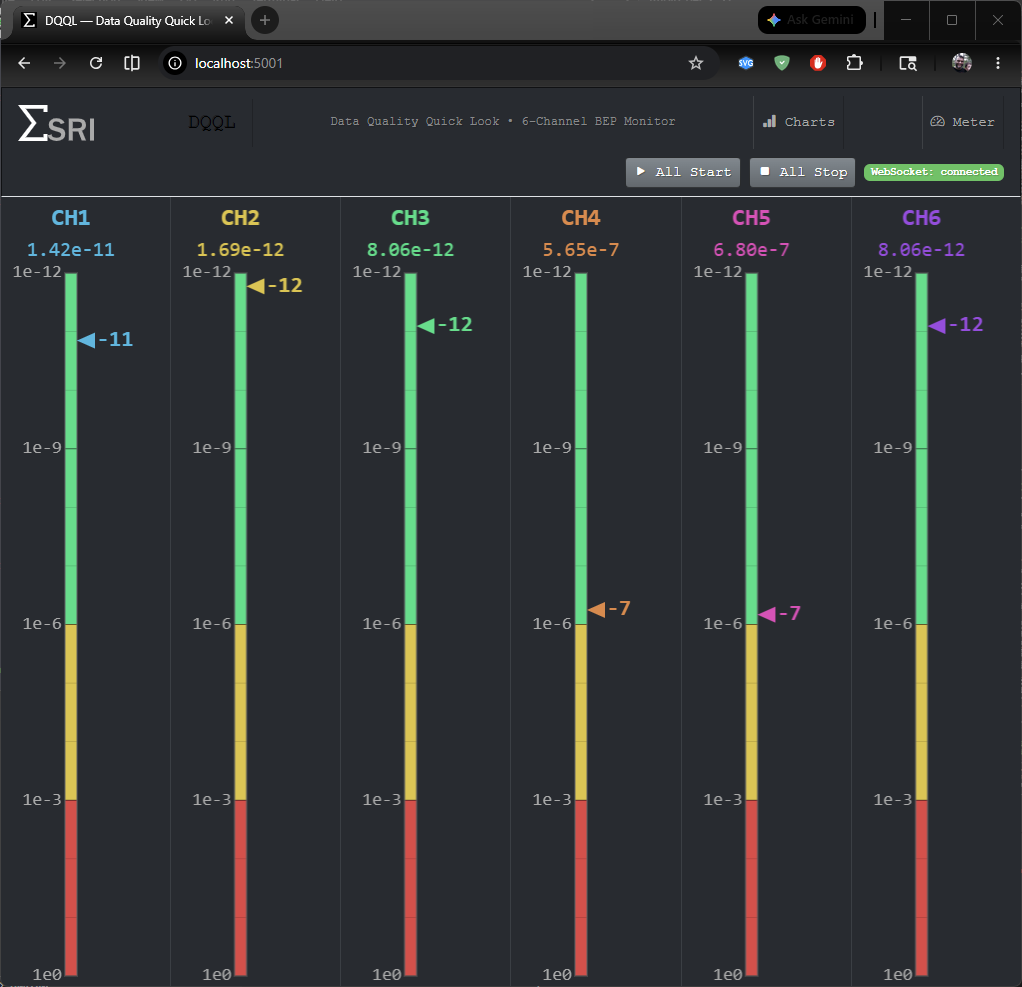

Color-coded meters and BEP strip charts surface degradation the moment it appears, and optional DQE de-framing re-broadcasts payloads to legacy instruments that do not support DQM/DQE.
IN THE FIELD
Where LinksCheck fits
Platform Features
Key Features
- Six-channel simultaneous IRIG 218-20 stream monitoring
- Automatic DQM/DQE extraction, display, and cross-stream comparison
- Real-time BEP display with configurable strip charts
- Synchronization and lock status indicators with configurable alarms
- Operator-focused dashboard – no engineering expertise required
- Browser-based operator interface with Ethernet remote access
Physical and Interface
- 19-inch rackmount chasis
- One 1Gb Ethernet (IRIG 218-20) input port
- One 1Gb Ethernet remove access / monitoring port
- Browser-based operator interface – no client software
- Optional NTP time synchronization for time-lagged logging
